Management Console

Note

Migrating features from the Management Console to the Web Interface is ongoing, and new features are not added to the Console.

Overview

Prior to starting the Men&Mice Management Console, make sure that you have installed and started the other Micetro components, as applicable. For more information about other components, see Implementation Guide.

The Men&Mice Management Console is a rich, Windows-only application that boasts a very intuitive interface. It is a central organizational tool of Micetro and provides all the tools you need to oversee the management of your DNS and DHCP servers and IP Addresses.

From the Management Console, you can simultaneously manage DHCP/DNS servers on any supported platform.

Note

Be aware that you will only be able to view the servers to which you have access. The administrator user has access to all servers.

Launching the Management Console

When logging into the Men&Mice Management Console, you have the option to choose “Single Sign-on.” This allows those users working on a Microsoft Network with Active Directory to sign on one time only to access all your resources.

Note

If you are the system administrator, you can choose whether to enable this option. On the Tools menu, select System Settings. On the General tab, select the Allow Single Sign-on checkbox to enable this option. Then click OK.

To start the Management Console:

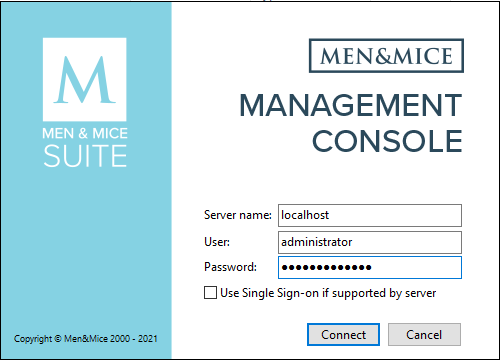

  1. Locate and launch the Men&Mice Management Console. The Men&Mice Management Console login dialog box displays.

../../../_images/console.png

  1. In the Server name field, enter the name or IP Address (IPv4 or IPv6) of the workstation on which Men&Mice Central is running. This is only required the first time you log in. After a successful connection, this field will be pre-filled with the server name you enter.

  2. In the User and Password fields, enter the applicable information. The default value for both fields is administrator.

  3. If you want to enable Single Sign-on, select the checkbox.

  4. Click Connect. If this is the first time any user logs into this particular Men&Mice Central, the First use wizard (Management Console, obsolete) launches. Otherwise, within a few moments, the Men&Mice Management Console will start, and the Manager window will be displayed.

First Use Wizard

The First Use Wizard opens when you connect the Management Console to a newly installed instance of Men&Mice Central or log in for the first time. The wizard is able to discover:

  • DNS Servers

  • DHCP Server

  • AD Subnets

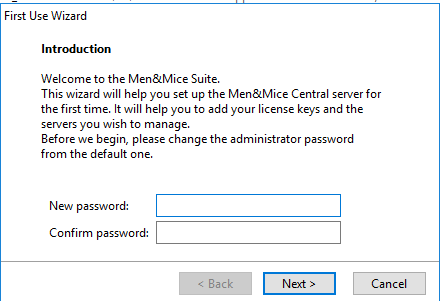

  1. Log in using the default credentials (administrator:administrator). Enter a new password for the administrator user, and then click Next.

../../../_images/first_login.png

  1. Follow the instructions to complete each page, and then click Finish.
