DNS Resource Records

Overview

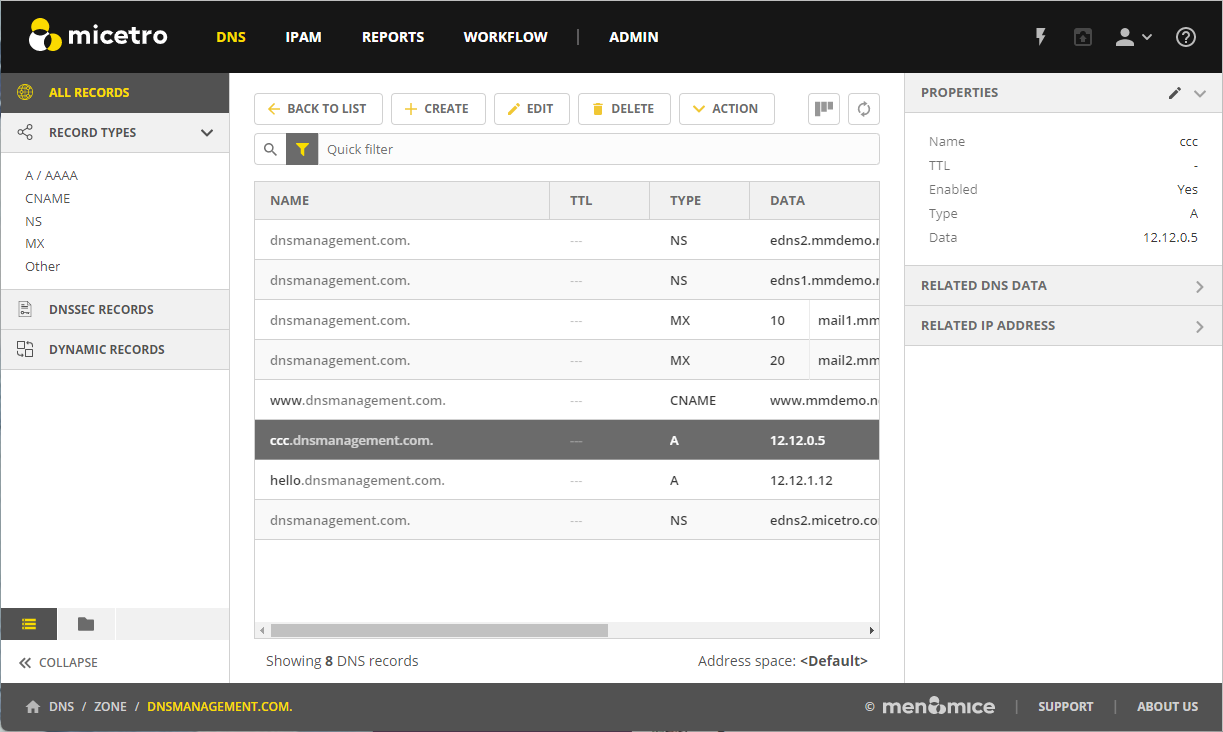

Each zone in the Domain Name System (DNS) contains a set of resource records that define how requests are processed or delegated within that zone. To view the resource records for a particular zone, you can double-click the zone, or select the zone and then click Open on the task bar at the top or on the Row … menu. Once you have opened the zone, you can view, edit, and manipulate the resource records.

../../../_images/DNS-records-Micetro-10.5.png

Selecting a DNS record in the list will display the following details and actions for the record in the Inspector on the right.

Item

Description

Actions

Lists all available actions for the selected record.

Properties

Lists the properties for the selected DNS record.

Related DNS Data

Lists all related DNS records for the selected DNS record. Related DNS records all DNS records that are somehow associated with the specified record.

Related IP address

Lists the related IP addresses in case of an A or AAAA DNS record.

Available Record Types

  • A / AAAA

  • AFSDB

  • ALIAS (read-only)

  • CAA

  • CDS

  • CDNSKEY

  • CERT

  • CNAME

  • CSYNC

  • DLV (read-only)

  • DNAME

  • DNSKEY (read-only)

  • DS

  • HINFO

  • HTTPS

  • LOC

  • MX

  • NAPTR

  • NS

  • NSEC (read-only)

  • NSEC3 (read-only)

  • NSEC3PARAM (read-only)

  • PTR

  • RP

  • RRSIG (read-only)

  • SOA

  • SPF

  • SRV

  • SSHFP

  • SVCB

  • TLSA

  • TXT

  • URI

  • WKS

Note

AWS and Azure ALIAS Records: For more information about ALIAS records in Micetro, refer to AWS and Azure ALIAS records in Micetro.

Creating New DNS Records

Note

For importing DNS records in bulk, see Importing DNS Records.

To create a new DNS record:

  1. Click Create in the main toolbar. The Create DNS Record dialog box opens.

  2. Enter a name and select the record type. After selecting the type, the relevant fields are automatically displayed.

Warning

If you save a new DNS record with the wrong type, you cannot change the type later. You have to delete the record and create a new one with the correct type.

  1. Enter the required information and custom fields, if applicable.

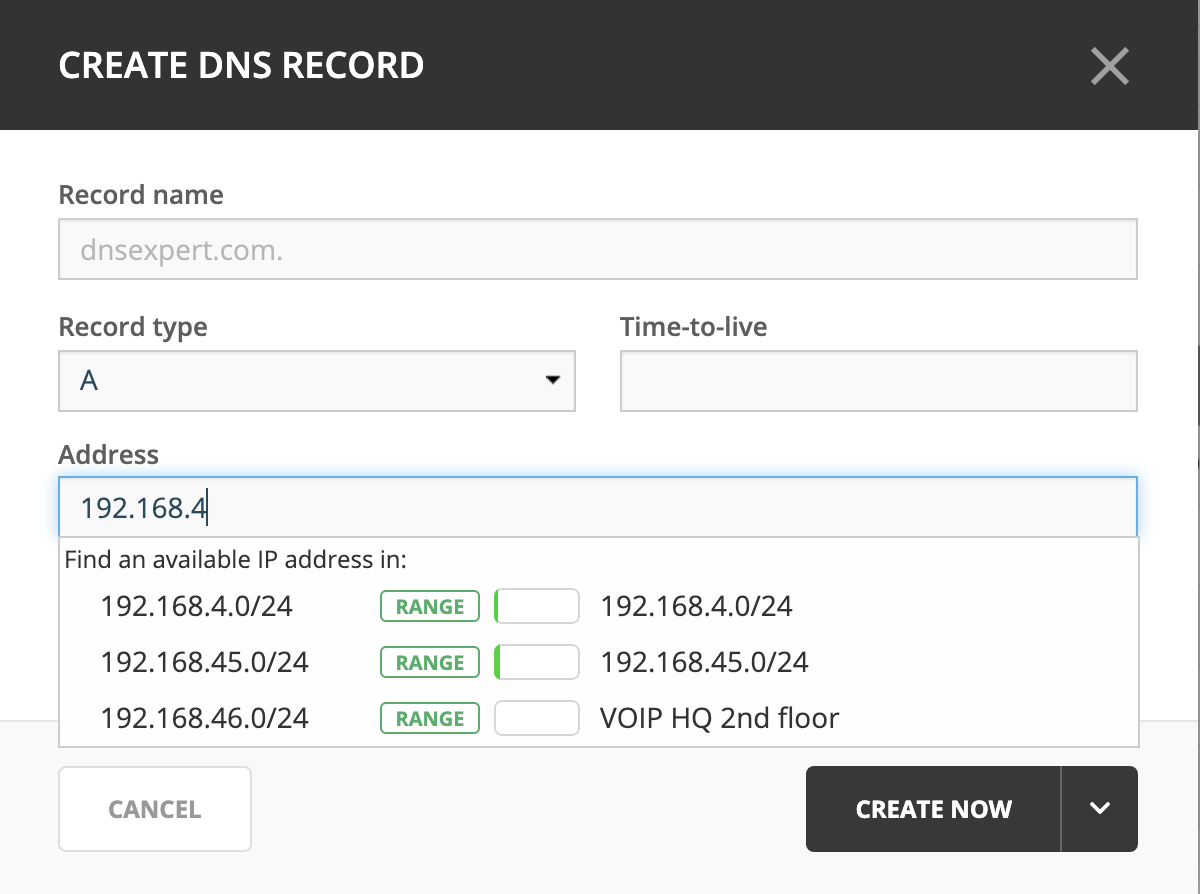

    • For A records, an autocomplete behavior helps find a free IP address in a network.

    • When you enter the first digits of a network, you’ll see a list of networks to choose from.

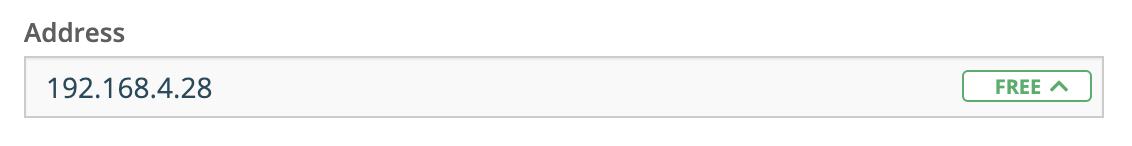

  • Selecting an item from the list will fill in the Address field with the next free IP address from that network, along with an indicator on the address state: Free, Reserved, Claimed or Assigned. You’ll also see insights for the selected IP address.

  1. When you are finished, click Create now to save the new record to the zone or Add to request to add it to the request queue. For more information about the request queue, see Workflow.

It’s also possible to create DNS records through the Micetro API.

IP Address Insights

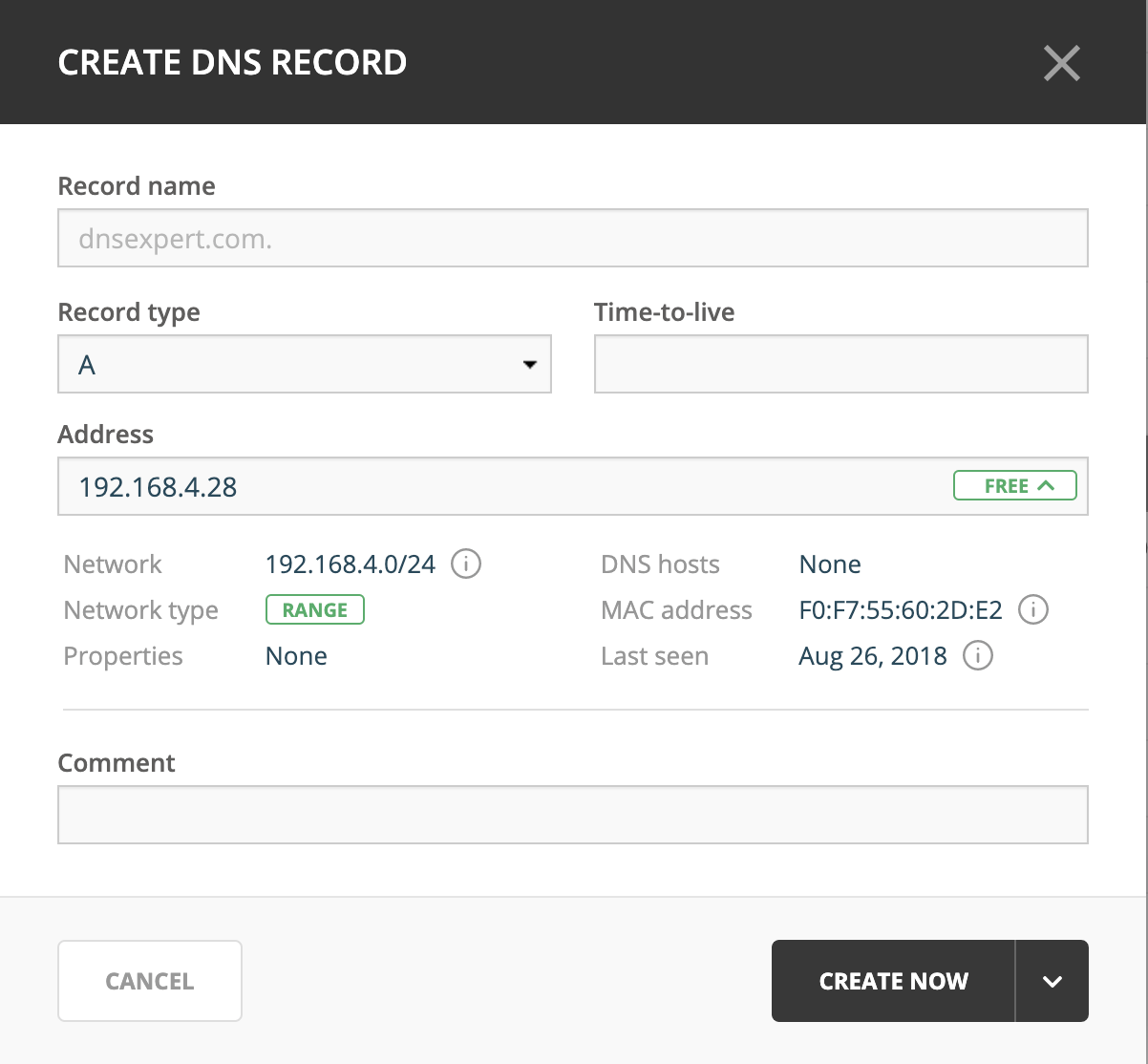

Once you have entered/selected the IP address in the Address field, you can see some insights about the address and related objects. These insights provide more information about the IP address and can help you to better understand its state.

../../../_images/create-DNS-record-ipam-insights-Micetro.png

Hover over the i icon to see more information or a list of objects:

  • Network shows more details on the network.

  • Properties shows a list of all defined properties for the specified IP address.

  • DNS hosts shows a list of all defined DNS hosts for the specified IP address.

  • MAC address shows a list of additional MAC information for the specified IP address.

  • Last seen shows a list of additional information for the specified IP address.

IPAM Insights

Network

The network containing the specified IP address

Network type

Either an IP address range or a DHCP scope

Properties

Various properties including custom properties, if defined.

DHCP client

DNS hosts

Lists all DNS hosts that are set for the specified IP address

MAC address

The MAC address of the discovered device

Last seen

The date for which the IP address was last seen

Time-to-live (TTL)

Throughout the system, the TTL value can either be specified in seconds or using the shorthand notation, such as:

  • 1s: 1 second

  • 1m: 1 minute

  • 1h: 1 hour

  • 1d: 1 day

  • 1w: 1 week

Editing a DNS record

You can edit an existing DNS record, if modifications are necessary.

To edit a DNS record:

  1. Select the DNS record in the DNS record list.

  2. Either click Edit in the main task bar, or click on Edit DNS record in the row menu (…).

  3. A dialog box is displayed where you can modify the DNS record.

  4. Click Save.

Deleting Records

Deleting a record removes both the data and the physical record from the grid.

To delete a DNS record:

  1. Select the record(s) that you want to delete. To select multiple records, hold down the Ctrl (or Cmd on Mac) key while making your selections.

  2. Click Delete on the task bar. The record is immediately deleted from the zone.

Undoing Changes to Records

If you need to revert or undo changes made to DNS records, Micetro provides a straightforward process through its history feature. It’s essential to use this feature carefully, especially when dealing with critical DNS configurations.

To undo changes:

  1. Locate the zone where the changes were made, and click on the row menu (…) associated with it.

  2. Select View history.

  3. Locate the specific action you want to undo within the history.

  4. Select Undo option on the Row menu (…). This action will roll back the selected change, restoring the DNS record to its previous state.

For more information about viewing object change history, see Viewing Object Change History.

Copying or Exporting Records

Micetro enables you to copy and/or export data. You can select up to 500 rows to export or copy at a given time. If you want to export or copy more than 500 rows, refer to Reports.

Note

In Micetro, it’s possible to copy and/or export all kinds of data following the same process. This includes but is not limited to services, devices, records, zones, and users.

To export records:

  1. Select the desired zone to view its records.

  2. Select the records you want to export.

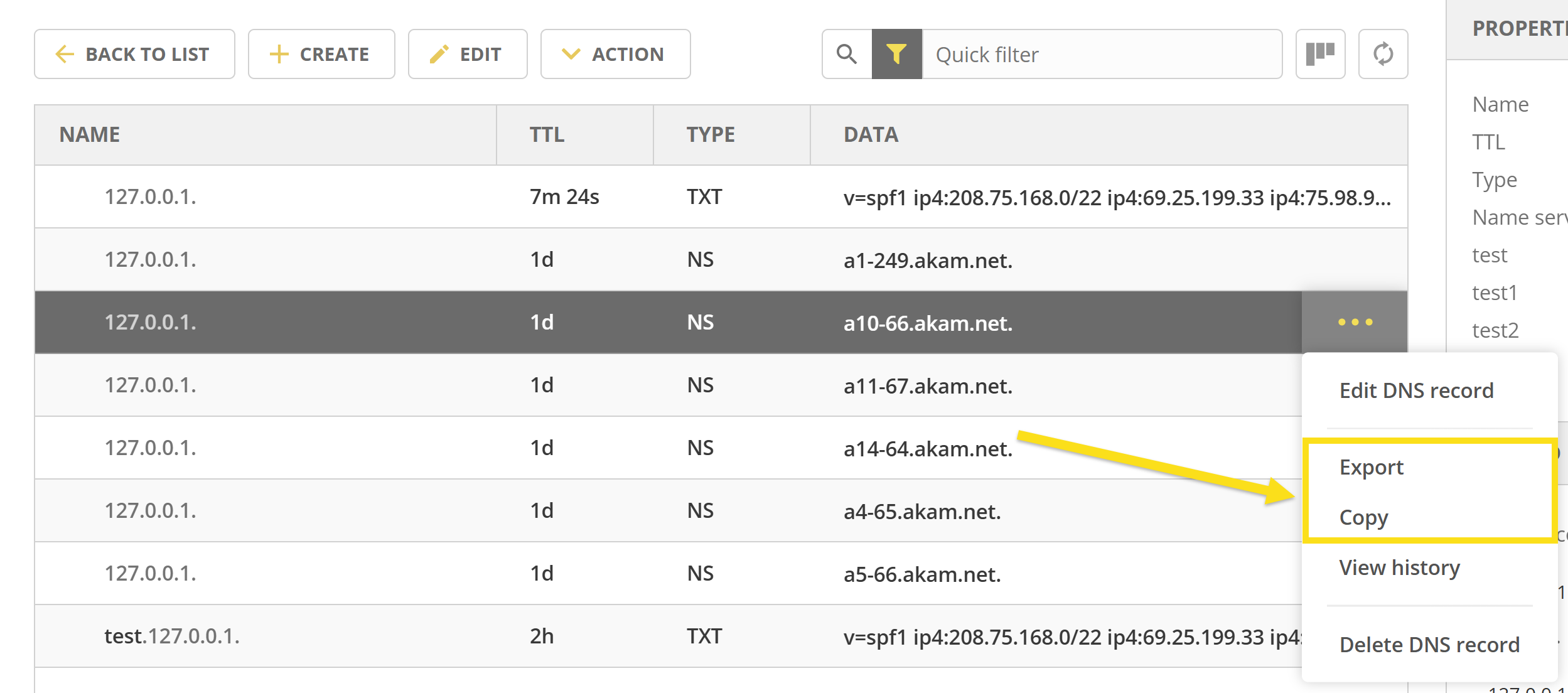

  3. On the Row … menu, select Export.

../../../_images/dns-export-copy.png

  1. In the dialog box, the File name field will be populated with DNS records, based on your selection.

  2. Select a file format from the Format dropdown. Choose from the following options:

    • Comma-separated values (.csv)

    • Tab-separated values (.tsv)

    • Excel spreadsheet (.xlsx)

  3. Click Download.

The file(s) will be downloaded to your local drive.

To copy records:

  1. Select the desired zone to view its resource records.

  2. Select the records you want to copy.

  3. On the Row … menu, select Copy.

The content from the row(s) you selected will be copied to your clipboard in tab-separated (.tsv) format.

Note

This is only available in environments running on localhost or that have HTTPS setup.
