Micetro integrates with Cisco Meraki to organize and customize DDI for remote office networks. It helps coordinate and manage important IP resources and network data on the Cisco Meraki platform, such as IP ranges, addresses, virtual local area networks (VLANs), and DHCP settings. This ensures efficient mapping and management of these elements in Micetro.
In Micetro, you can synchronize and manage both Meraki networks that have DHCP enabled and those that don’t. Refer to Viewing Synchronized Meraki Clients below for more information about managing synchronized Meraki clients.
An admin user can configure synchronization parameters for your Meraki integration in Advanced System Settings.
Tip
For information about how to set up a connection between Micetro and Meraki, refer to these instructions on how to add a cloud service to Micetro.
Viewing Your Meraki Infrastructure
When you have added your Meraki environment to Micetro, your networks will appear on the IPAM page. Micetro retrieves subnets from all networks that have an MX appliance.

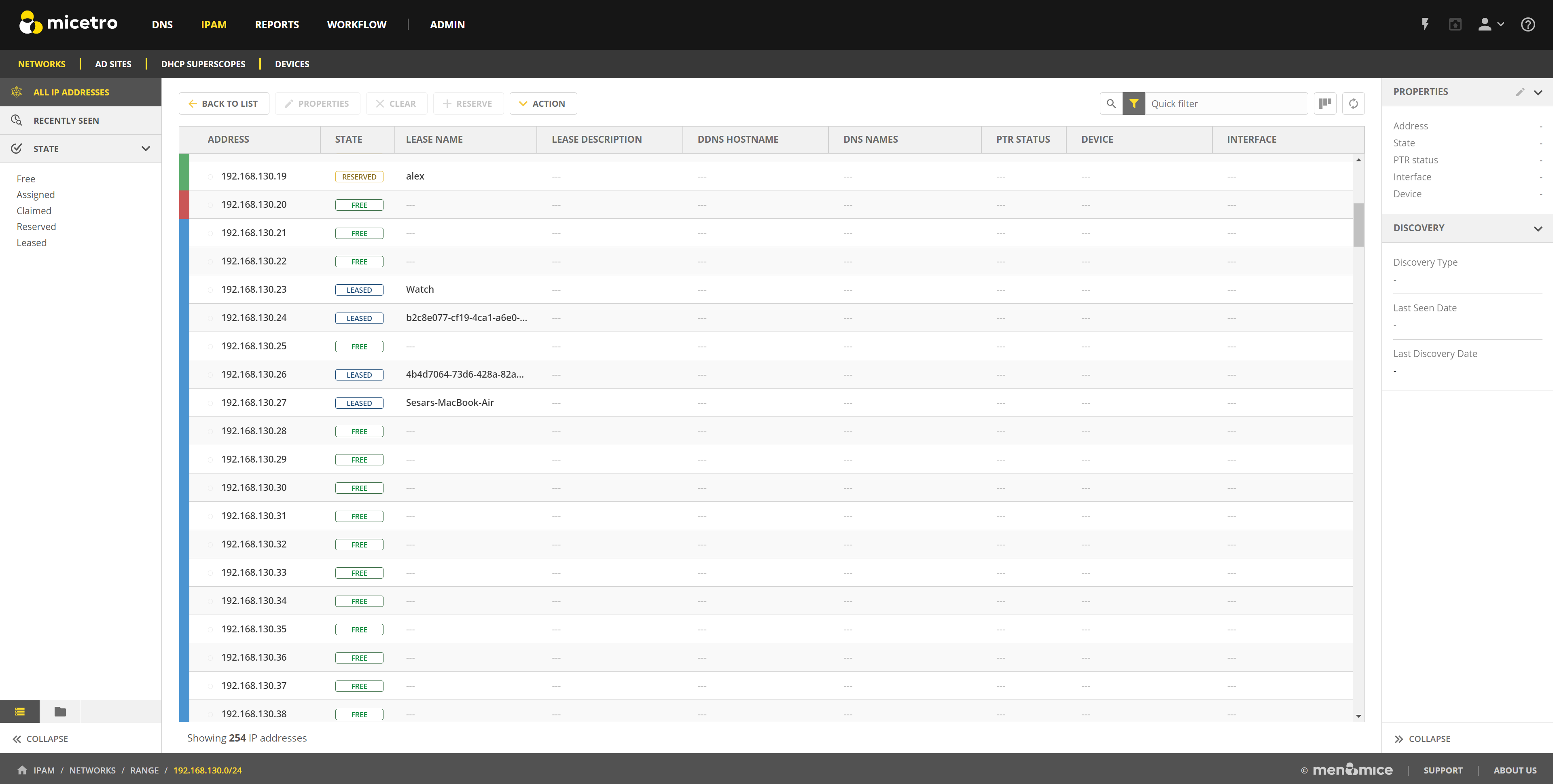

Double-click a range or scope in the IPAM grid to view its associated IP addresses. This opens the IP Addresses grid, where you can monitor the statuses of all IP addresses within the range or scope. When a Meraki client is synchronized in Micetro, the IP address history updates. For more information about viewing IP addresses, refer to Viewing Networks.
Viewing Synchronized Meraki Clients
It’s possible to synchronize Meraki subnets and their clients regardless of whether the subnets have DHCP enabled or disabled, or have configured a DHCP relay to another server. A subnet is associated with a Range.

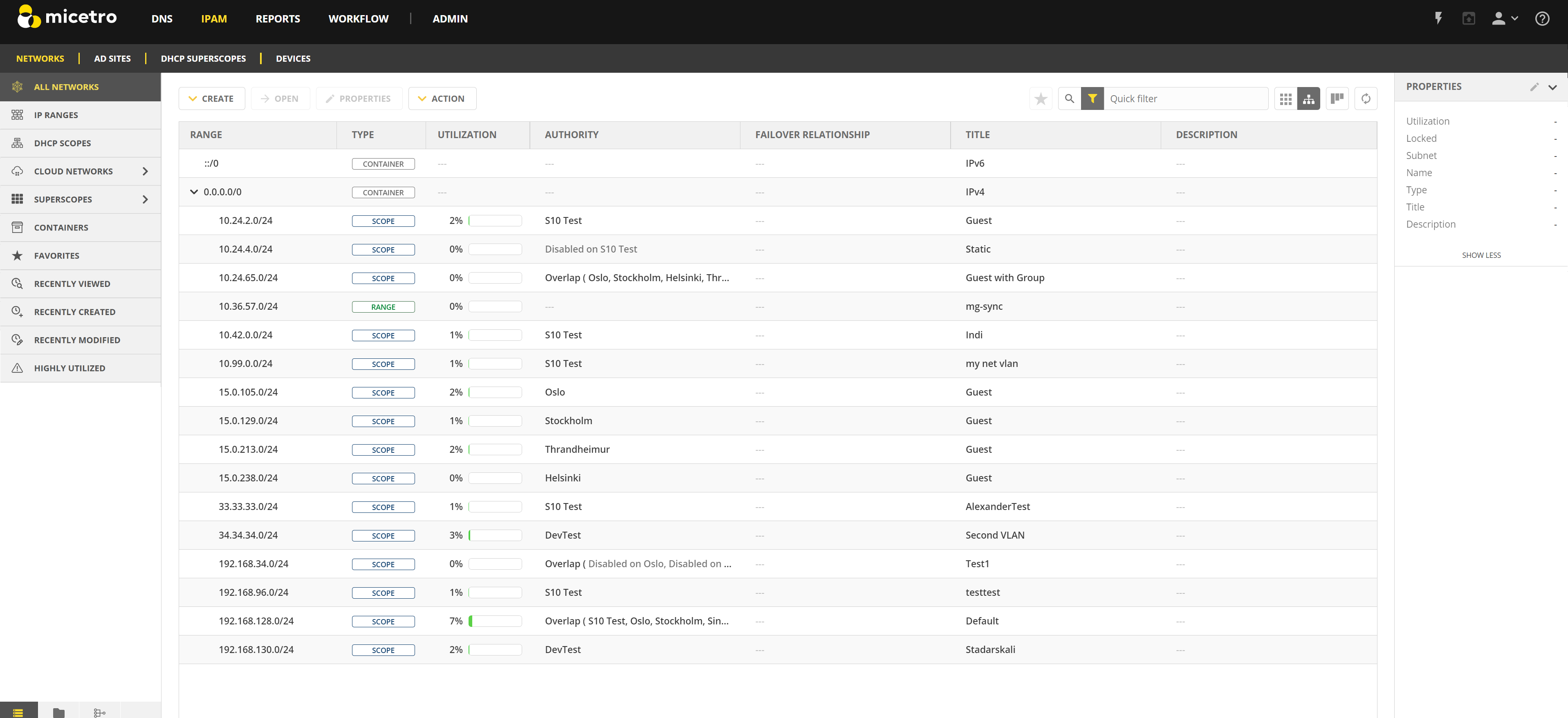

For Meraki subnets, the Authority column of the IPAM data grid is populated with the Meraki network to which the subnet belongs. Multiple subnets can be associated with the same range, in which case the Authority column is populated with Overlap. Depending on how many ranges the subnet is associated with, the Authority column also displays the names or the number of associated ranges.
Clients on DHCP networks may have a Leased or Reserved State, depending on whether the client has been temporarily or permanently assigned.

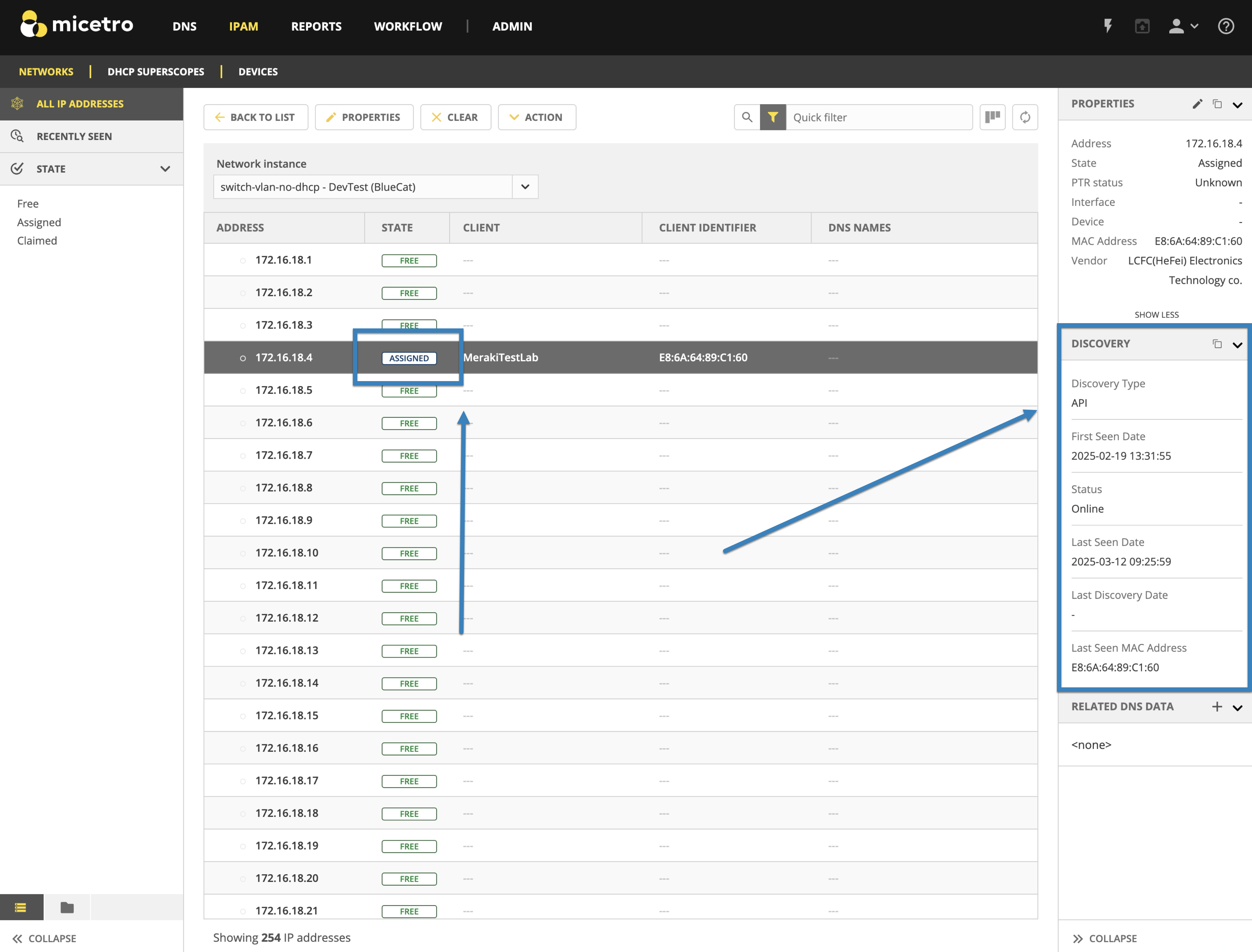

Clients on non-DHCP networks have an Assigned State and their Discovery Type is API, which can be viewed in the Inspector.
For more information about how Meraki data is displayed in Micetro, refer to Mapping of Meraki objects to Micetro.
Managing VLANs and LANs

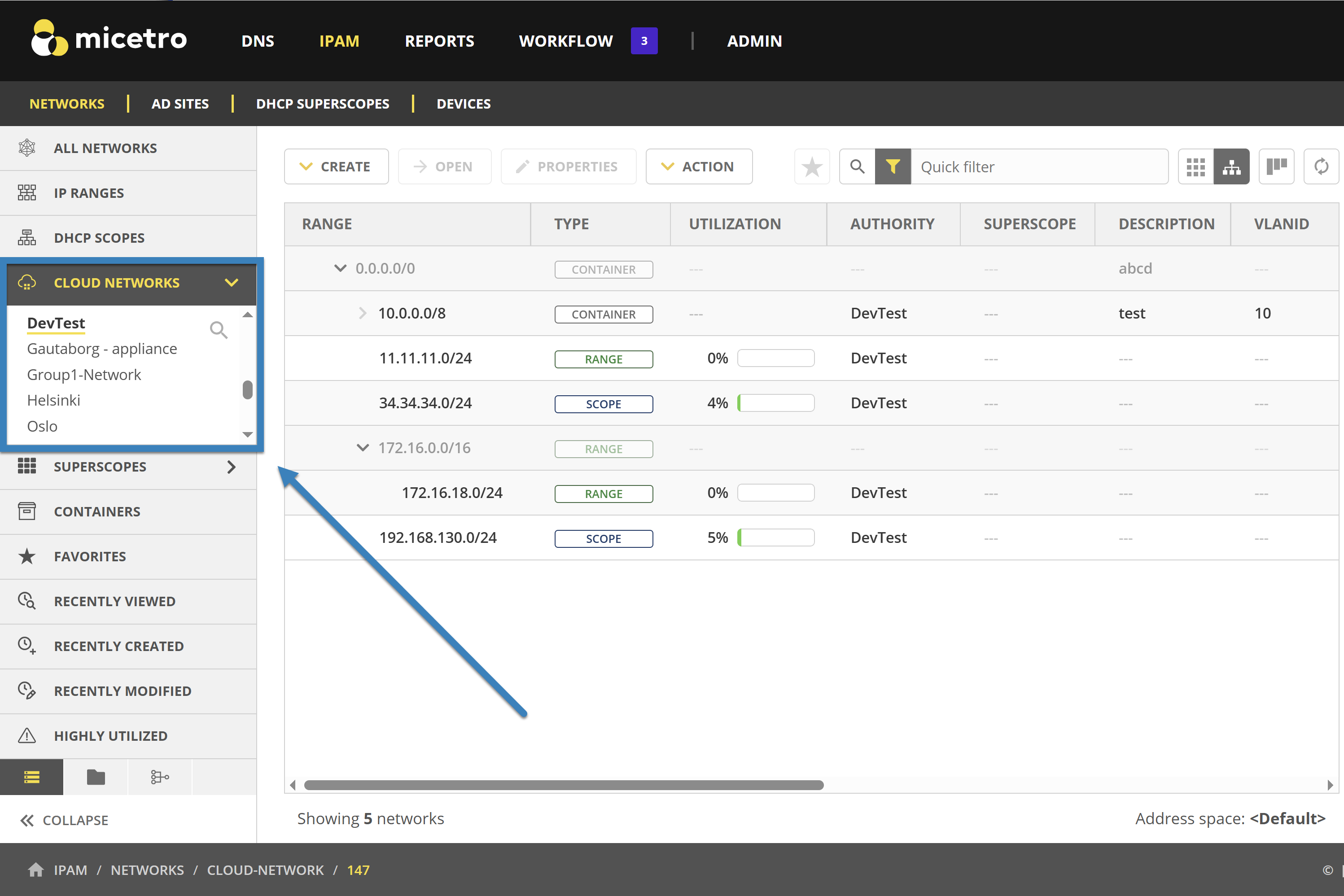

In Micetro, Meraki networks are cloud networks. You can use the Cloud Networks filter in the left sidebar to filter the data grid by an individual cloud network and view the VLANs/single LANs of that specific network.
Overlapping LANs

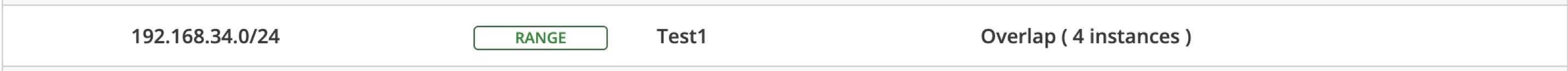

In some Meraki environments, LANs on different networks may share the same IP address range. When multiple LANs share the same IP range, they are displayed in Micetro as overlapping instances. The Authority column of the grid displays “Overlap” and the names or number of instances, depending on the number of overlapping instances.

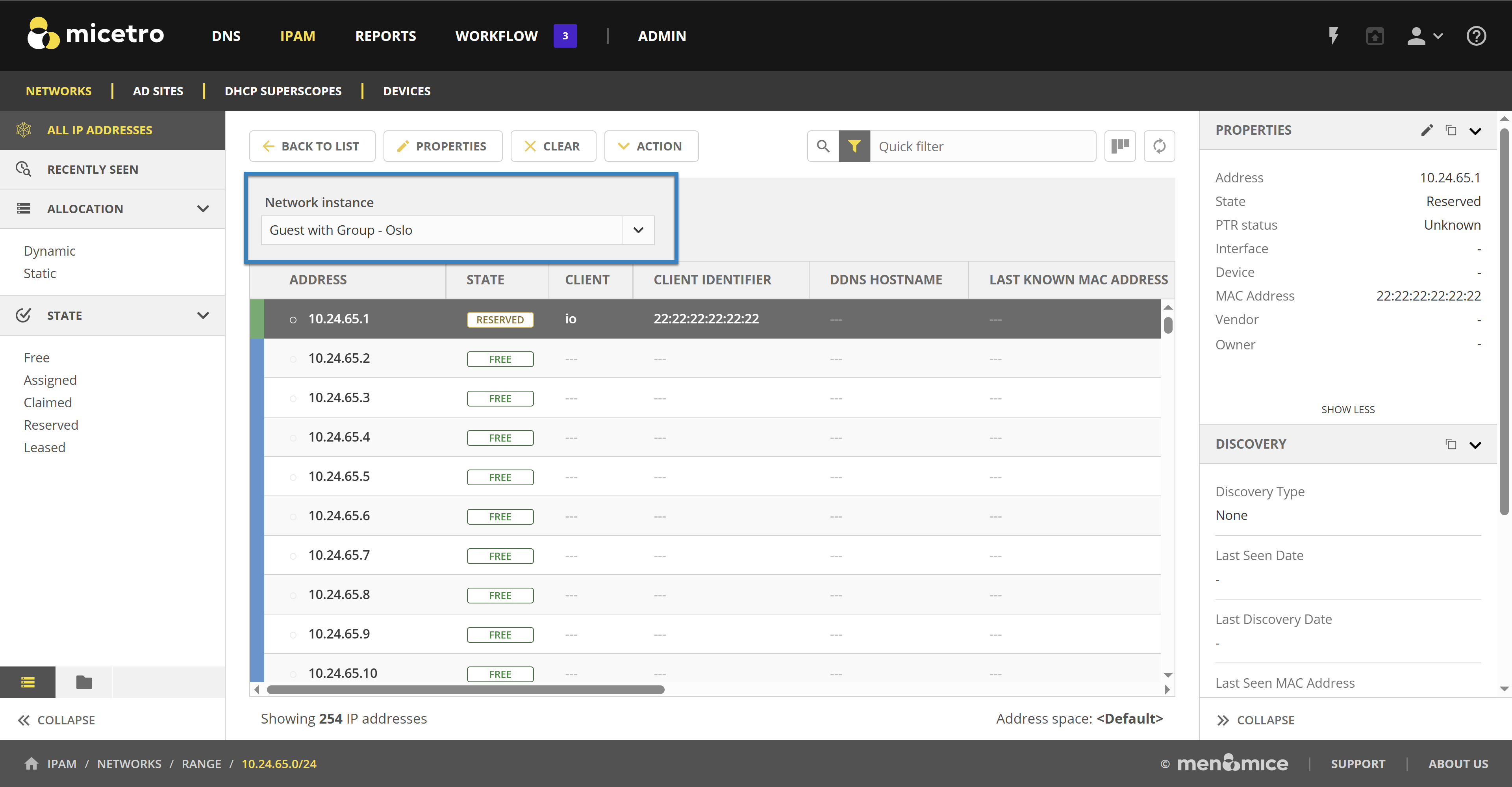

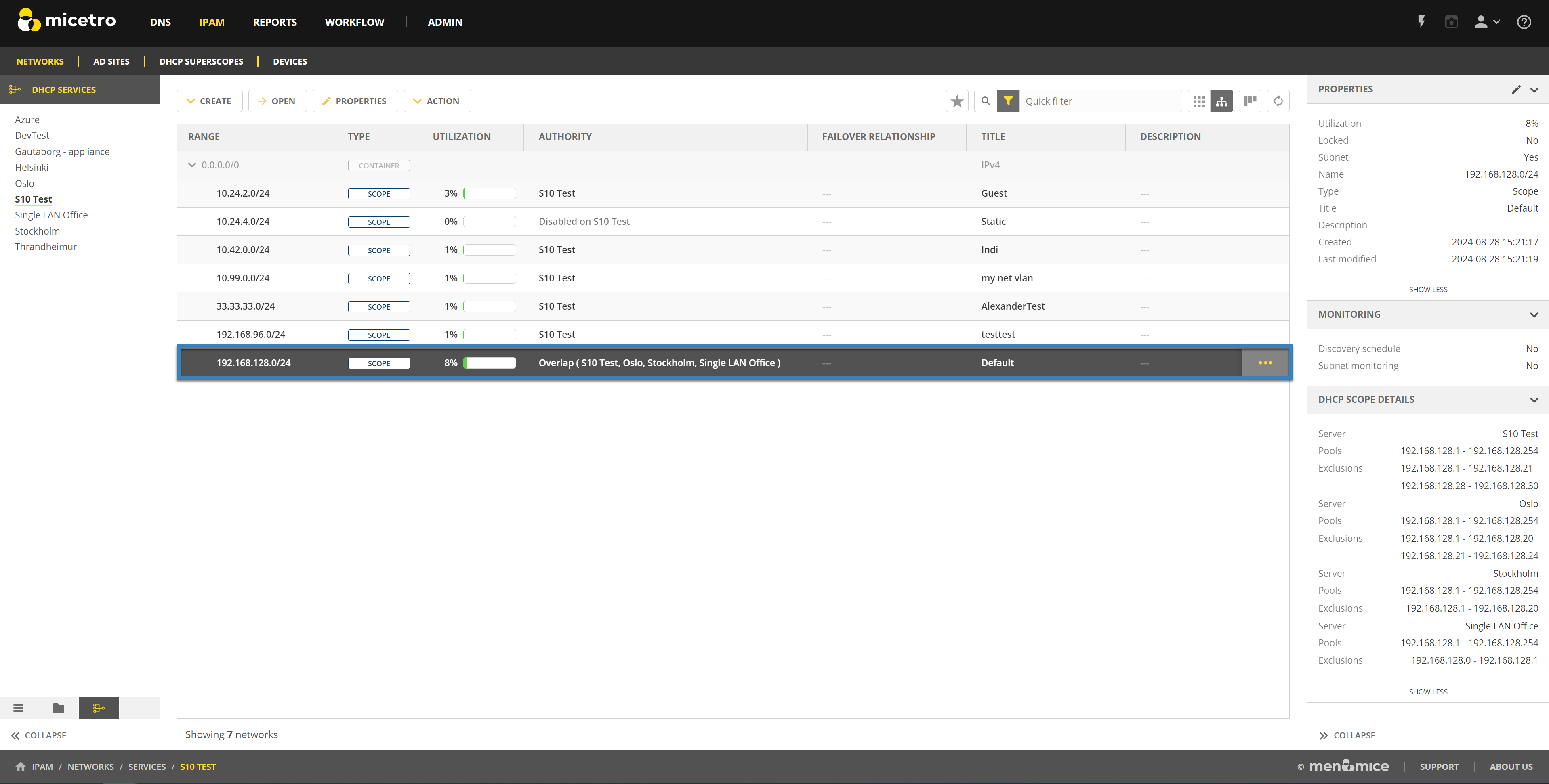

Double-clicking a scope or range with overlapping LANs opens a Network instance selector in the IP Addresses grid. You can use the selector to switch between different instances of the network. Selecting a different network instance updates the IP Addresses grid to show the statuses of the IP addresses for the selected instance.
Updating Meraki DHCP Configuration via Micetro
Because Micetro’s connection with Meraki is bidirectional, you can perform some of the most common Meraki DHCP management tasks for DHCP-enabled networks directly through Micetro, including:
Note
Micetro only allows updates to VLAN networks. For single LAN networks, use the Meraki dashboard.
Creating DHCP Reservations
You can create a DHCP reservation through the IP Address page in Micetro.

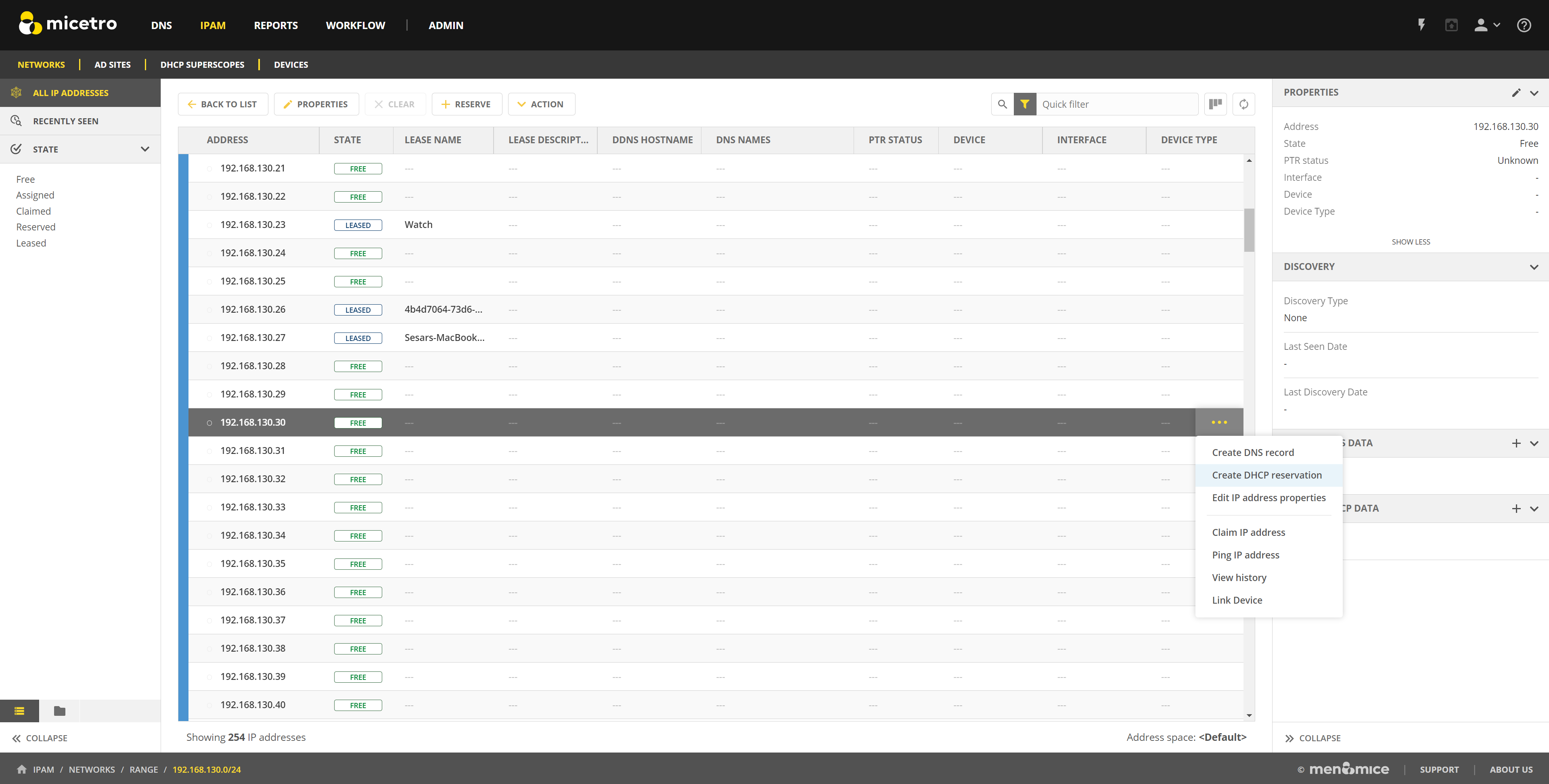

Select an IP address in the data grid and select Reserve on the task bar or use the Row … menu to select Create DHCP reservation.

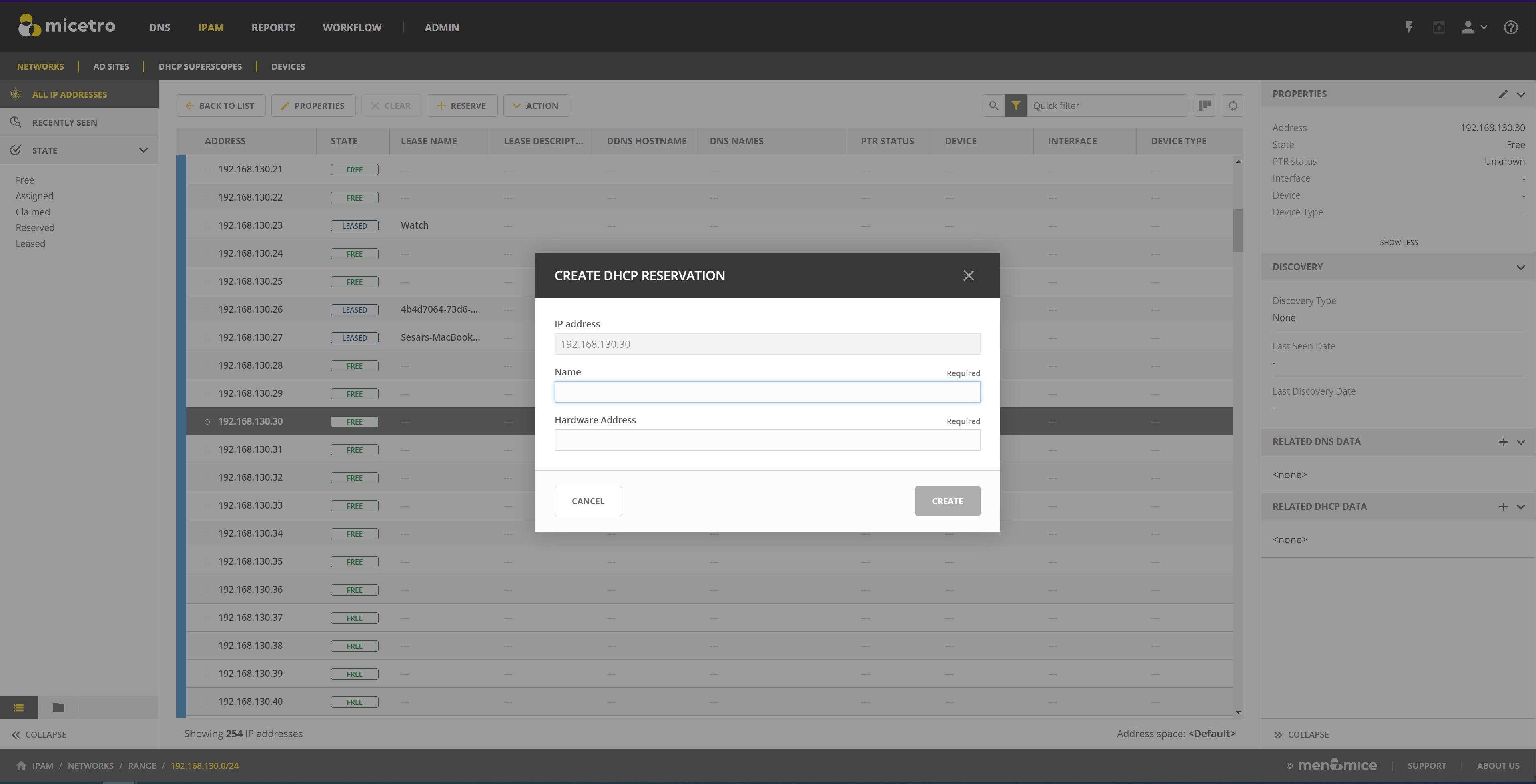

Give the reservation a Name and enter the Hardware Address (MAC).
Select Create.
To create a DHCP reservation through the API, use the following endpoint:
POST /dhcpScopes/{ownerRef}/dhcpReservations
Editing and Deleting Reservations
On the IP Addresses grid, you can also edit or delete a DHCP reservation.
To edit or delete a reservation:
In the grid, select an IP address that has an existing reservation.

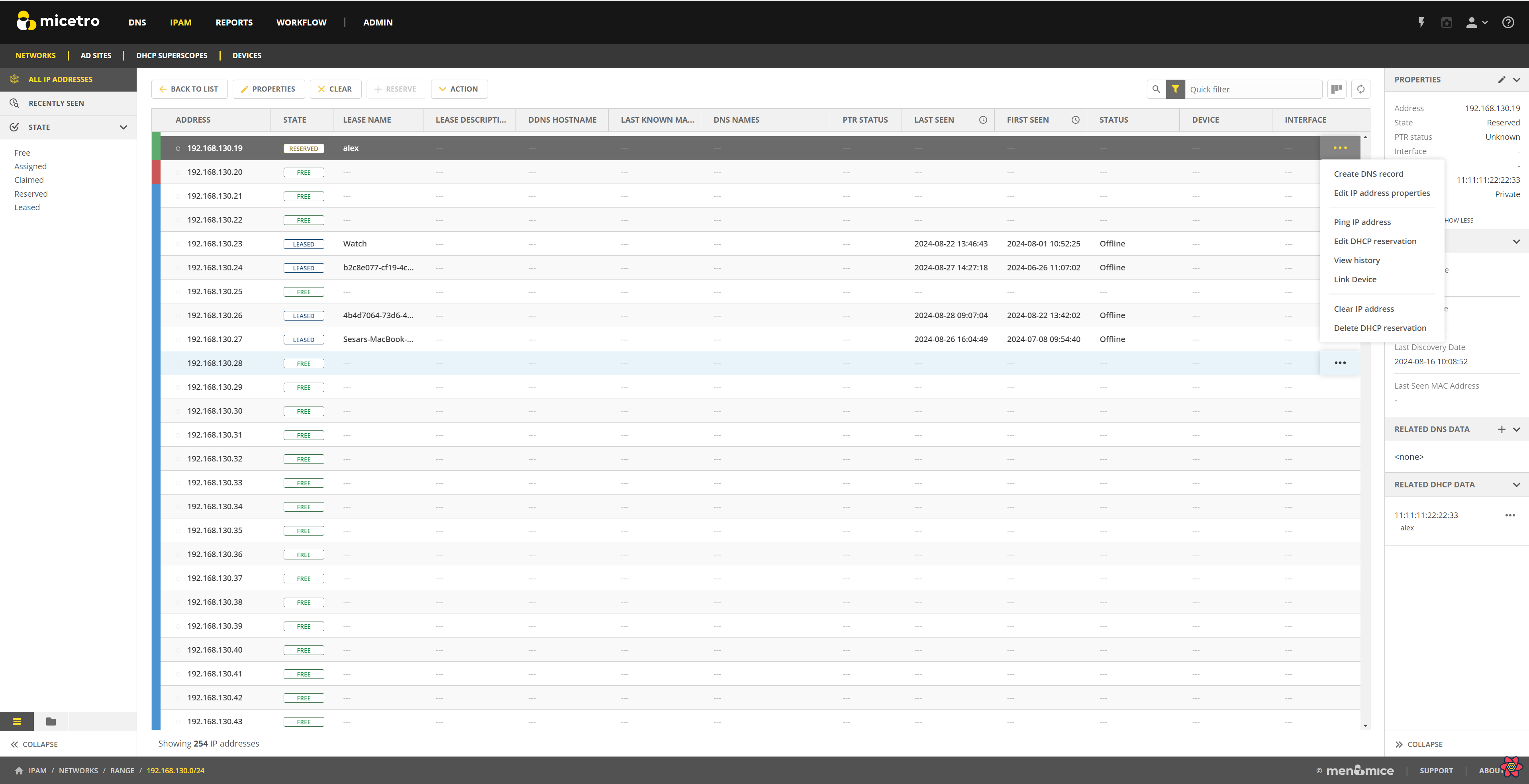

Using the Action or Row … menu, select Edit DHCP reservation to modify the reservation or Delete DHCP reservation(s) to delete it.
To edit or delete DHCP reservations through the API, use the following endpoints:
To edit:
PUT /dhcpReservations/{dhcpReservationRef}To delete:
DELETE /dhcpReservations/{dhcpReservationRef}
Editing DHCP Scope Options
You can manage your DHCP options on a scope level through Micetro.
To edit DHCP options
In the IPAM grid, select the scope whose options you want to edit.

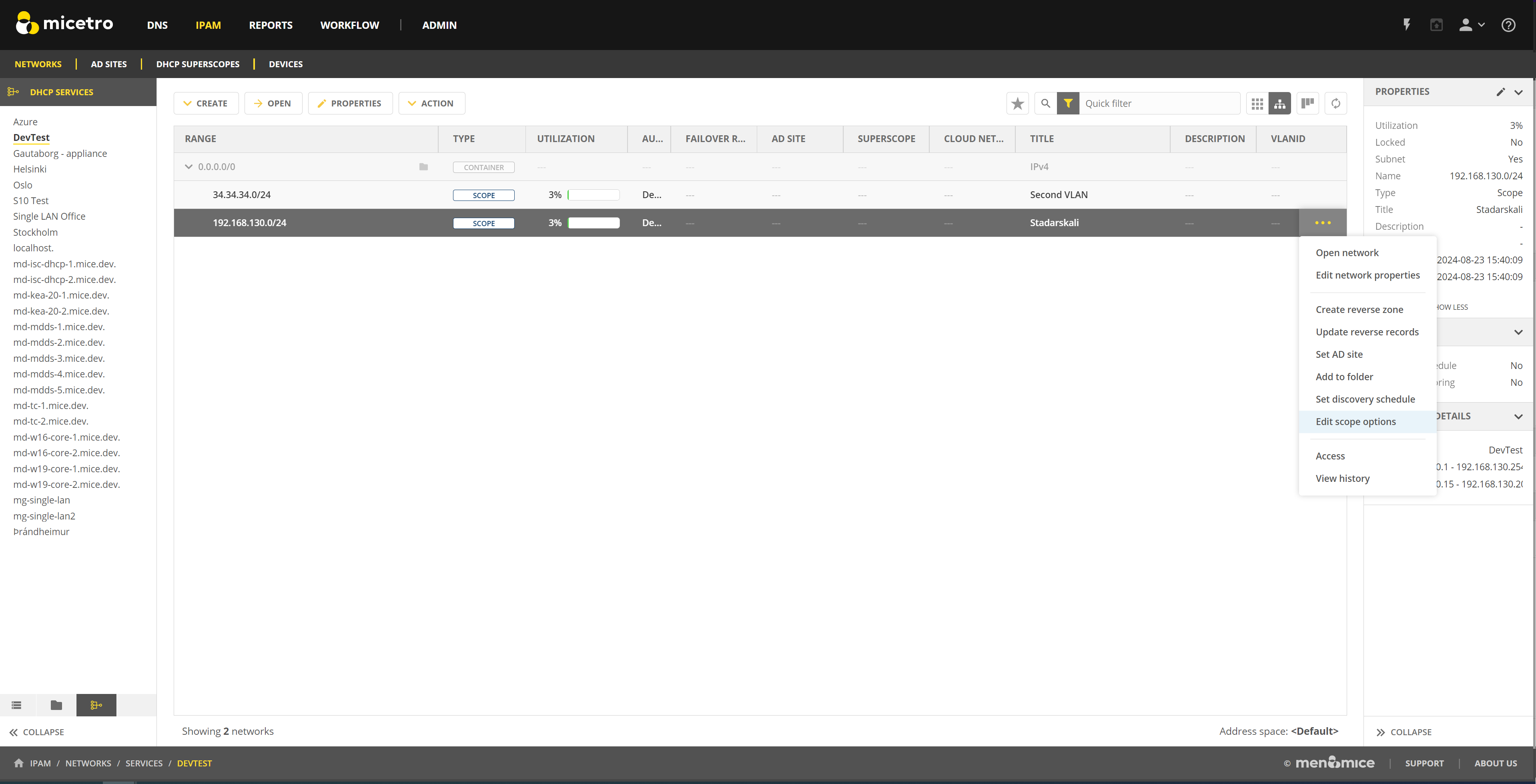

Using the Action or the Row … menu, select Edit scope options.

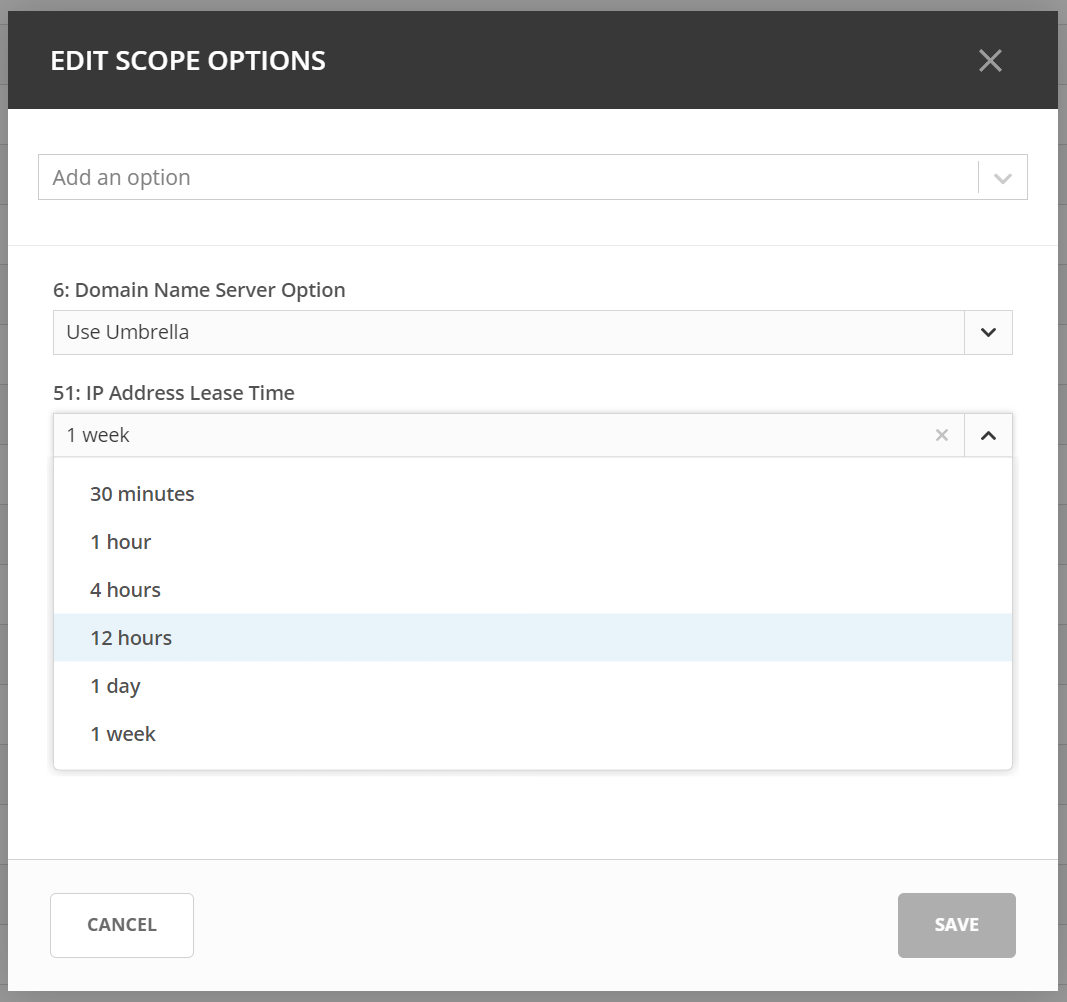

In the dialog box, you can view the options for the scope and update them, if necessary.
To edit the DHCP scope options through the API, use the following endpoint:
PUT /dhcpScopes/{ref}/options
Adding DHCP Exclusions
You can manage excluded address ranges for your DHCP scopes through Micetro.
To create an exclusion:
In the IPAM data grid, select the relevant scope.
Using the Action or the Row … menu, select Manage DHCP pools.
In the dialog box, select Add Exclusion.
In the Add Exclusion dialog box, enter the range of addresses you want to exclude in the From and To fields and select Add. All addresses within this range, including the start and end addresses, will be excluded.
Select Save.
To create a DHCP exclusion through the API, use the following endpoint:
POST /dhcpScopes/{ownerRef}/dhcpExclusions
Editing and Removing Exclusions
When necessary, you can edit and/or remove exclusions from a DHCP scope.
To edit or remove an existing exclusion:
In the IPAM grid, select the scope whose exclusions you want to edit or remove.
Use the Action or Row … menu to select Manage DHCP pools.
In the dialog box, select the exclusion you want to edit or remove.
Using the exclusion’s Row … menu, select Edit to modify the exclusion or Remove to delete it.
To update or remove DHCP exclusions through the API, use the following endpoints:
to edit:
PUT /dhcpExclusions/{dhcpExclusionRef}To delete:
DELETE /dhcpExclusions/{dhcpExclusionRef}
