Service Management

Service Management is the place for connecting and orchestrating DNS, DHCP, and IP Address Management (IPAM) services with Micetro. Your services can be hosted on-premises, deployed on specialized appliances, or reside in the cloud. Connected services are displayed on the Service Management tab on the Admin page.

To access Service Management:

1. Select Admin on the top navigation bar.

2. Click the Service Management tab in the upper left corner.





   • By default, all services configured in the system are shown.

   • In the left pane, you can filter the list by type of service or provider.

   • In the right pane, the properties of a selected service are shown.

Note

The Micetro web application does not yet provide full management of IPAM services. Therefore, they are not listed here, but you can still enable IPAM services using the Add Service function.

User Permissions and Access Management

Depending on user permissions and available license keys, DNS and DHCP services and functions can be disabled or hidden.

Micetro has a granular role-based Access Management system. It is recommended that DNS and DHCP administrators be members of the built-in DNS Administrators and/or IPAM Administrators roles. To manage Appliances, it is recommended to be a member of the built-in Administrators role.

When not using the built-in roles, users need to be members of a role with the following permissions. Note that additional permissions might be necessary for comprehensive service management. For more information on Micetro’s granular role-based access controls, see Access Management.

• To manage DNS services: Administer DNS servers

• To manage DHCP services: Administer DHCP servers

• To manage cloud services: Access to manage clouds

• To manage appliance services: Administer appliances

Supported Platforms

Micetro supports the following DNS and DHCP platforms:

• DNS

  • AuthServe

  • AWS Route 53 (cloud)

  • Azure DNS (cloud)

  • BIND

  • Edge DNS (cloud)

  • Microsoft DNS

  • NS1 (cloud)

  • Micetro DDS Appliance

• DHCP

  • Cisco IOS

  • Cisco Meraki

  • ISC DHCP

  • Kea

  • Microsoft DHCP

  • Micetro DDS Appliance

Micetro Agents

Micetro requires an agent to handle communication with external services. The installation location of the agent depends on the service type and whether it operates on-premises or in the cloud. Agents are installed on the respective machine, the machine running Micetro Central, or on any machine with the same domain as the DNS/DHCP servers. A single agent can manage communication with multiple servers. For more information on agents and how to install them, see Micetro Agents.

Note

When managing Microsoft DNS servers on remote computers using the DNS agent, some actions for static zones may not be available:

• Disabling resource record

• Enabling resource record

• Viewing and editing record comments

• Disabling zone

To perform these actions, you need to install the DNS agent on the server and use that connection when adding the server.

Adding a Service

To add a new service to Micetro, you must have permission to administer DNS.

Adding a new service is either a two- or three-step process, depending on the type of service being added.

To add a service:

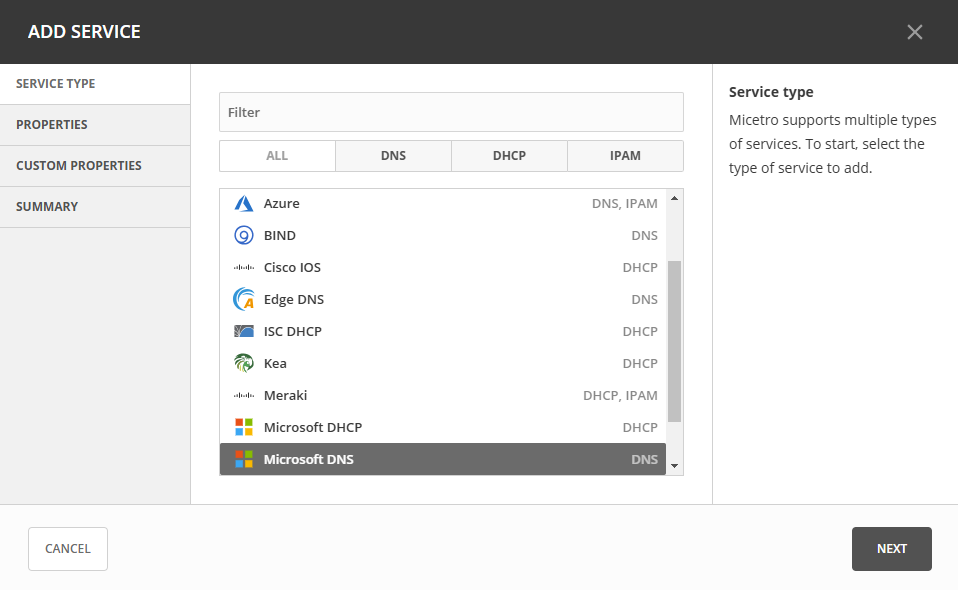

1. On the Service Management tab, click Add Service.

2. Select the service you want to use. The list of options is based on your license keys. You can use the DNS, DHCP, and IPAM filters at the top to narrow down the list. You can also use the search box to find the specific service you need. Click Next.

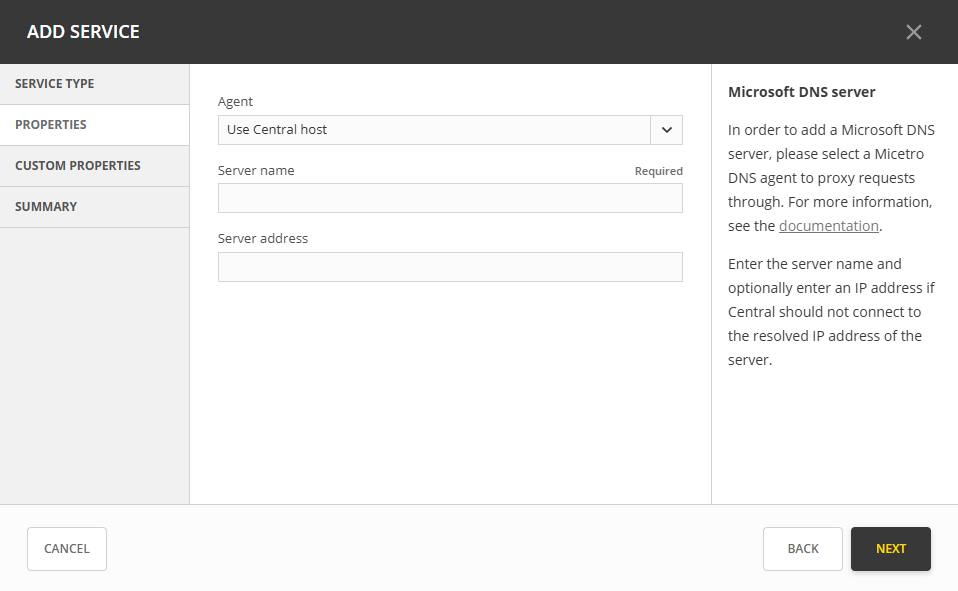

3. In the Properties step, select an agent from the dropdown menu.



Note

• This step is not required for cloud services.

• For ISC BIND and ISC DHCP, this step is not required because the agent must be installed on the service host itself.

• With the exception of the above services, the agent can be installed on the Micetro Central host, the service host, or — for MS DNS/DHCP, ISC Kea, Cisco Meraki, and Cisco IOS — a different host. If you have already added a service of this type, you can select from existing agents or create a new one. A single agent can be used to manage multiple service connections.

  • Choose from a list of available agents registered during the installation process for AuthServe, Cisco IOS, Kea, Meraki, MS DNS, and MS DHCP. For AuthServe, you must specify the name and shared secret for the agent. For all of these services excepting AuthServe, Meraki, and Cisco, you can select the Service host to use the agent installed on the server.

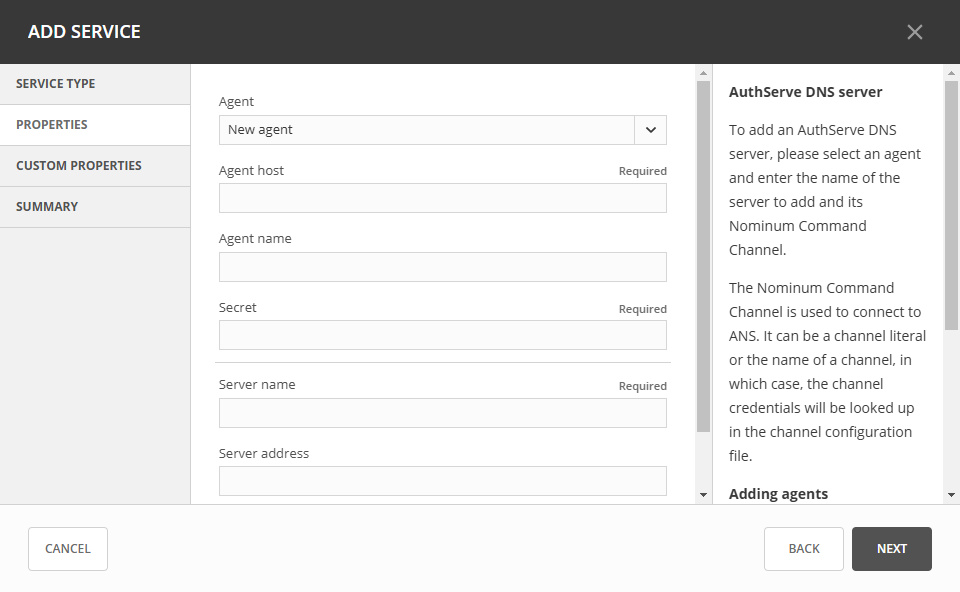

  • Register a new agent for AuthServe, Cisco IOS, Kea, MS DNS, or MS DHCP by selecting New Agent from the Agent dropdown. Enter a hostname or IP address (if the agent hostname is not resolvable). For AuthServe specificially, you also need to enter an agent secret.

4. Enter the necessary details for the service and click Next. The Properties step displays a sidebar with context-sensitive help specific to the type of service you select.

• Cloud services: Each service type has its set of credentials in addition to the optional service name. For more details on adding cloud services, see Integrating cloud services.

• On-premises services:

  • Enter the hostname or IP address of the service/server.

  • AuthServe uses a channel as the connection string. The channel name is mapped to a hostname in a server configuration file. ‘ansp’ is the default channel name, which maps to localhost. To use a different hostname, the format is "1.2.3.4#<someseceret>". Consult the AuthServe documentation for details.

5. In the Custom Properties step, you can set optional custom property values for the service, such as authority and region. Click Next.

6. Review the service’s settings in the Summary step. If you need to make any changes to the service, use the Back button to return to any of the previous steps.

7. Select Add to add the service to Micetro.

Editing Services

Depending on the service, you can change the name and/or custom properties for the service if, for example, you need to refer to the service by another name or if you are connecting to the service by an IP address and the IP address has changed.

To edit a service:

1. Locate the service you want to edit.

2. Select Edit service on either the Action or the Row … menu. You can also double-click the service.

3. Make the necessary changes. Click Save to save the changes.

Other Service Actions

All actions applicable to a selected server can be accessed either on the Actions menu above the list or the Row … menu that appears on the right-hand side when you hover over a row.

Action	Description
Attach service	Attaches a previously detached server/service.
Detach service	Detaches or disables the server/service. When a server is detached, it is not synchronized with Micetro and is excluded from various checks. When a server is detached, it appears dimmed in the Service overview. The server can be reattached to become part of the server synchronization again.
Synchronize	Initiates the synchronization of zones and records, or scopes.
Remove service	Removes the selected server/service from Micetro. This option is available only for the Administrator account.
Access	Shows which roles have access to the service and what actions they are authorized to perform. For more information about how to manage object access, see Object access.
View history	Allows you to view the history for the selected server/service.

Service States

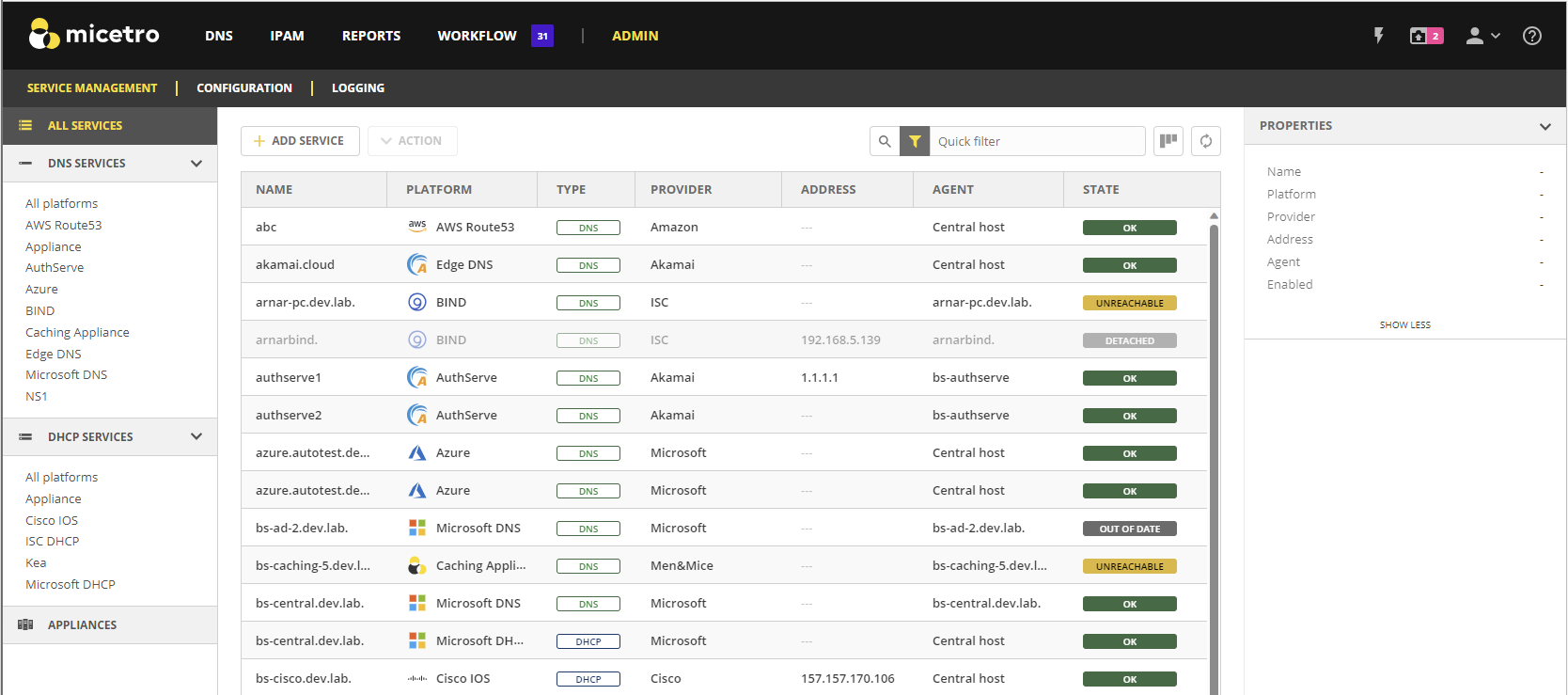

The Service overview shows indicators representing the status of the each service configured in the system.

These indicators may refer to the Micetro Agents running on the DNS/DHCP server, or the DNS/DHCP service itself.

See the following table for detailed information about these indicators:

Indicator	Component	Explanation
Unknown	Agent	The status of the DNS/DHCP agent is unknown.
OK	Server, Agent	The DNS/DHCP agent and service are both OK.
Unreachable	Agent	The DNS/DHCP agent is offline or otherwise unreachable.
Out of date	Agent	The DNS/DHCP agent has a different version than Central.
Updating	Agent	The DNS/DHCP agent is being updated.
Uninitialized	Server	The DNS/DHCP server is uninitialized and needs to be manually initialized.
Detached	Server	The DNS/DHCP server has been detached without removing it from Micetro.
Service Down	Server	The DNS/DHCP server is down and not responding to queries.
Service Impaired	Server	The DNS/DHCP server is running but impaired. [1]
Service Shut Down	Server	The DNS/DHCP server has been shut down manually through Micetro.

[1]

In Kea HA configurations. See Kea DHCP High Availability.

DNS Services

Refer to the following topics for information about configuring the BIND DNS platform and managing DNS server caches:

• Editing BIND DNS Server Options
• Managing the DNS cache

DHCP Services

For detailed information about the different DHCP platforms and their configurations, refer to:

• Microsoft DHCP
• ISC Kea DHCP
• ISC DHCP
• Cisco DHCP
